Clog

Clog (Compact Electronic Logbook System) is a web-based logbook system aimed to be used in accelerators. The goal is to design and implement a logbook system with modern web technology but in a very simple way.

Significant change

• From v2.1.0, attachment storage is moved from MongoDB to file system due to 16MB limitation and performance issue
• The attachment directory is /srv/clog2
• The attachment directory is migrated to /srv/clog2/attachments

Features

• Compact: lightweight architecture with separate frontend and backend; high-efficiency frontend and backend framework; single programming language (JavaScript) finishing full-stack web development.
• Multiple Login Method: prior to deployment, the login method can be configured as local database, LDAP or OAuth.
• Multiple Language: currently English and Chinese languages are supported, other languages can also be added in future.

Software environment

• PrimeVue: 3.26.1
• Vue.js: 3.2.47
• Node.js: 16.19.0
• MongoDB: 6.0.3

Design

Architecture

Block diagram

Schema

Multi-language

English version

Chinese version

Screenshots

User login page

Login page for local database authentication

Login page for LDAP authentication

Login page for CSNS OAuth2 authentication

Home page

Logbook management page

User management page

Log preview page

Log full display page

Log detail page

Log create page

Log edit page

Attachment viewing page

Rich-text editor

Rich-text display

Template management

Template import

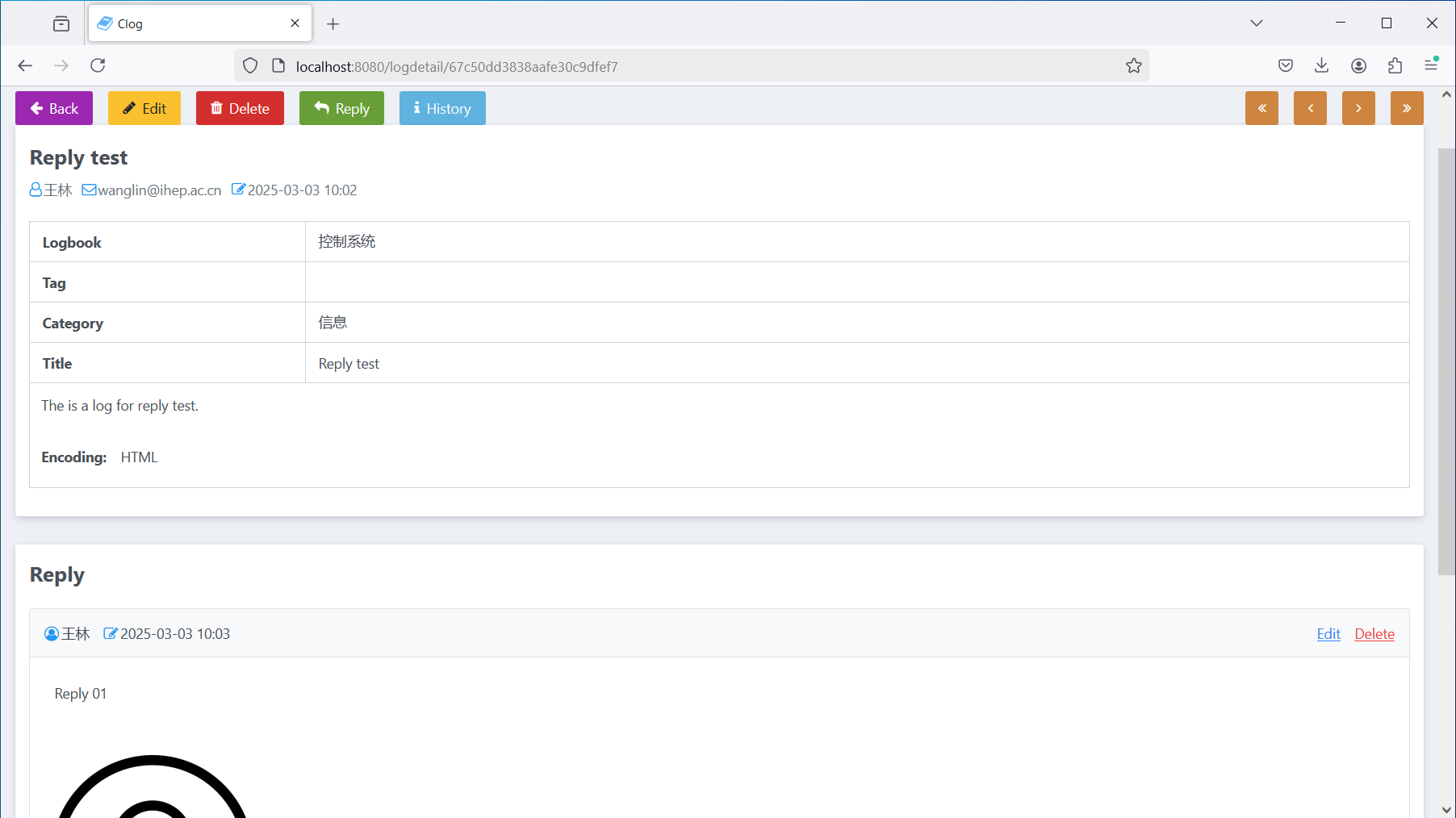

Log reply

API token

Generate API token

Use the API token to create logs using Postman

Use the API token to create logs using Python

The append=true query parameter will append the text to the end of a log instead of creating a new one if the log with the title exists.

import requests

headers = {
        'Authorization':'Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJuYW1lIjoiYWNjLW1zIiwiZW1haWwiOiJjc25zLWFjY29AaWhlcC5hYy5jbiIsImFkbWluIjpmYWxzZSwiaWF0IjoxNjgyMDQ1OTk5LCJleHAiOjE2ODIwOTI4MDN9.AgXSTsVgVp2ifbvpY_bI3Nu15h4Tj5HFuwv1v7G8pP8'
        }

data={
        'log':'{"logbook":"6423a38977784806a220b058","category":"Info","title":"API test","description":"send from python"}'
        }

response = requests.post('http://10.1.236.131:3000/api/logs?append=true',
        headers=headers, data=data)

print(response.text)

Project structure

• Frontend: provides web pages using Vue.js
• Backend: provides a REST API using Node.js

Project setup

Configuration

Edit the following files if needed.

frondend/src/config/configuraion.js
backend/config/frontend.js
backend/config/login.js
backend/config/ldap.js
backend/config/smtp.js

Database import

Go to docs directory

cd docs
mongorestore --db clog2 database

Compiles and hot-reloads for development

Go to frontend directory

cd frontend
npm install
npm run dev

Go to backend directory

cd backend
npm install
npm run dev

Deploy for production

Go to frontend directory

cd frontend
npm ci
npm run build
cp -r dist/* /var/www/html

Go to backend directory

cd backend
npm ci
pm2 start server.js

Apache http configuration

• Enable Apache Rewrite (mod_rewrite) Module
• Copy frontend/deployment/apache/.htaccess to /var/www/html or /usr/local/apache2/htdocs/

Visit web pages

http://localhost:8080/

Test users in the database are as follows:

username: admin    password: 1    admin: true
username: user1    password: 1    admin: false
username: user2    password: 1    admin: false

Deployment with Docker

One compose.yaml and two Dockerfiles (one for frontend and one for backend) are provided to create the following three containers,

• frontend: Vue.js web pages
• backend: Node.js REST API
• database: MongoDB with sample data

Prior to building images and running containers, the values of serverPath in frontend/src/config/configuration and url in backend/config/database.js need to be consistent with the host IP address, because localhost or 127.0.0.1 of the host is not accessible from inside containers by default.

The following commands can be used to build images and run containers,

docker compose build --no-cache
docker compose up

If building and running succeed, the following page can be accessed,

http://ip_address:8080/

Docker deployment has been tested in the following environment,

• Debian 10 Linux
• Docker version 26.1.0
