Professional Firmware for the Voxelab Aquila and Creality Ender-3 3D Printers
^{_{(Or any other compatible 3D Printer)}}

^{- Link to latest releases}

Visit the Wiki for more information about this firmware and the features it provides

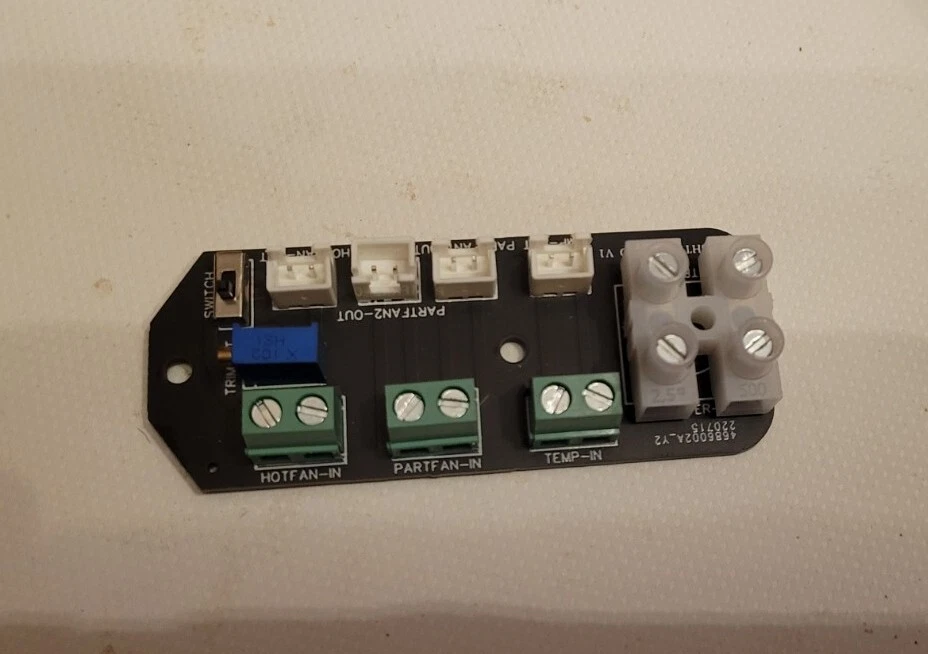

Checkout this Universal 3D Printer Adapter Breakout Board
I designed and made it to be used for upgrading the hotend.

---

And don't forget about the thingiverse models I've designed:

Minimalist Dual Cooling Fan Shroud for Aquila / Ender-3 V2

Tool Box for Middle Extrusion "VOXELAB" engraved

Fantastic Filament Guide for Aquila

Raspberry Pi Zero Case Mount 30mm case width

---

Universal Firmware for RET6/RCT6 chips:

G32, N32, H32, Creality 4.2.7 and 4.2.2 boards
^{_{(Also available for E3 Free-runs, BTT SKR Mini E3, STM32F401, GD32F303, and others)}}

Important

Please read the following:

Note

I will be working on more updates, features, and tweaks along the way.
Much has been included in MRiscoCProUI releases, the most recent of which is 2025-October.
There are all kinds of versions and combinations to suite a specific printer, and changes to the UI and menu layout which are not available in any other fork.
For information about recent changes visit the Wiki - What's New in this Release.
Support for 12864 Monochrome LCD types is under the model C2.
For DWIN displays, new ICON's have been added and old ones enhanced. Whoever edited them before saved directly as .JPG which in many editors lowers the quality of the image. I painstakingly remastered almost every single one; preserving the original quality.

You must REFLASH the DWIN LCD display with the new DWIN_SET; which is located in the display assets folder.

If you encounter any issues, have a suggestion, or feature requests please feel free to post it on the Issues tab, otherwise if everything is going well please leave a comment on the Discussions tab.

Enjoy using this fork of Marlin as I intend it to be the best; intuitive, easy to use, and convenient. So far I really enjoy the new settings and toolbar for the main menu. There is a variety of parameters and options that can be changed without having to reflash the firmware.

Tip

If you start printing and it says Advance Pause while Runout is enabled, you may have to change the state in which it triggers "no filament" to HIGH or LOW (depending on what is already selected).
This is found in:
Prepare -> Filament Management -> Filament Settings -> Runout Active

---

Firmware for HC32 chips:

Important

Information regarding HC32:

Warning

FOREWARNING: So far everything has been working great - as normal - except there may an issue with the initialization of the SD card media. If you get a message saying this has failed, just reinsert the card or reboot. Keep trying if this doesn't work the first time.

Caution

G-code Thumbnail Preview has been disabled for HC32 boards for the time being.
When enabled, and an SD card is inserted, the screen may freeze and restart. So this means printing may not be possible without the SD card unless you use the USB serial interface to upload the file (through a slicer or something like OctoPrint, or Pronterface).
That is why this feature has been disabled, otherwise everything works as normal.

Note

H32->HC32 support has been added to the Marlin Firmware repository. Please post any Issues there first, otherwise if there are any ProUI specific issues or anything else to report please do so under Issues tab here. You can find the original HC32 repo here @shadow578/Marlin-H32

Other Information:

General information about the firmware and updates is located in the Wiki page What's New In This Release.
Other changes and updates are addressed here.

• LA - Linear Advance
• MPC - Model Predictive Temperature Control
• IS - Input Shaping
• Firmware Retract

MarlinSimulator Instructions

There is a MarlinSimulator file provided to test out for yourself. It simulates a pre-built configuration of this firmware.

The MarlinSimulator can compile for Manual Mesh Bed Leveling or Auto Bed Leveling w/BLTOUCH enabled.

For MacOS you're on your own...sorry.

Install Files (Windows)

If you haven't already, you must install the SDL2 library.
SDL2-devel-2.32.10-mingw.zip is provided for in /docs.
Or get the latest release at libsdl-org/SDL/releases and look for SDL2 version (NOT SDL3)
You can either copy/paste the files directly, or install them. It's recommended to install them, but if you have any issues, then try the alternative copy/paste method.

Navigate to the extracted SDL2 directory in an MSYS2 or bash terminal (Run as Administrator):

To install SDL for native (32-bit) development:

make native

To install SDL for cross-compiling development:

make cross

^{It's recommended to do both make native and make cross.}

For 64-bit - If you receive an error, then try the following:

make install-package arch=x86_64-w64-mingw32 prefix=/usr

Alternative SDL2 Install

Copy/Paste Files You may have to first Build so the directory can be created, but you can:

• Copy the contents of ~\SDL2-2.32.10\x86_64-w64-mingw32\include\SDL2\*, paste into the directory .pio\libdeps\simulator_windows\imgui

-OR-

• Copy the just folder ~\SDL2-2.32.10\x86_64-w64-mingw32\include\SDL2, paste into the directory .pio\libdeps\simulator_windows

Once all that is done, just Build like you would normally and MarlinSimulator.exe will be created.

Install Files (Linux)

These are the files you need to install:

sudo apt install libsdl2 libsdl2-dev libsdl2-net-dev libsdl2-2.0-0 libglm-dev

^{There may be other basic ones if you don't have already; like python, cmake, pip...}

Using MarlinSimulator

Before building, open a terminal and run ./buildroot/share/scripts/simulator_error.sh [linux|windows], or change the following manually:

1. In Configuration.h:

• Add BOARD_SIMULATED to MOTHERBOARD, then disable ENDSTOP_INTERRUPTS_FEATURE and PROUI_EX 1.

2. In platformio.ini:

• For default_envs = add simulator_windows (for Windows) | simulator_linux_release (for Linux).

3. In lcd/e3v2/proui/dwin_defines.h:

• Replace #define INVERT_E0_DIR HMI_data.Invert_E0 with #define INVERT_E0_DIR false (or comment it and #undef INVERT_E0_DIR out).

4. In inc/Conditionals-5-post.h:

• Comment out #undef Z_MIN_ENDSTOP_HIT_STATE.

5. In native.ini:

• Replace -flto with -fno-lto at release_flags = under [simulator_common]. ^{Only if you get an error message about it.}

How to use:

• Open the executable program found in .pio\build\simulator_<windows|linux_release>.
• • For Windows: MarlinSimulator.exe
• • For Linux: ./MarlinSimulator
    ^{Enter in a terminal.}
• Under SD Card, under Components on the right side, select or load an image.
• • To simulate an actual print, you may need to use a .img file containing the .gcode.
• Select Serial Monitor(1) if you do not see any output.
• Use like a normal terminal. For example, enter G28 to watch it Home.

Copy .gcode into .img file

1. Create new image file:

dd if=/dev/zero of=new_fs.img bs=1M count=128

2. Format the image:

sudo mkfs.vfat -F 32 -n SDCARDIMAGE new_fs.img

3. Copy the .gcode file (in place of my_stl.gcode):

sudo mcopy -i ~/new_fs.img my_stl.gcode ::/

4. Check contents of image:

mdir -i ~/new_fs.img ::/

5. Copy the new image to the final destination:

dd if=~/new_fs.img of=~/Marlin/.pio/build/simulator_linux_release/fs.img bs=512>

Printer Information

The Precompiled binary files of this firmware can work with STM32 (STM32F103RET6/RCT6 - STMicroelectronics) and it's clones:

• G32 (GD32F103Rx - GigaDevice)
• N32 (N32F103Rx / N32G455x - Nation)
• H32 (HC32F460x - Huada Semiconductor/HDSC)

They can be downloaded here:
Releases

Donations

This would not be possible without having to spend my free time working on it.

I would greatly appreciate supporters, helpers, and beta testers whenever possible.

Please show your support by considering making a donation, or giving your input if you end up using this firmware.

It wasn't easy getting it to this point without all the help and input. I am just a basic programmer and the work is mostly trial and error.

Thank goodness for VS Code's compiler and also AI like ChatGPT which shows me what changes need to be made as I make them.

Thank you to all those who have given me their support.
